High Speed 1 Layer Ibc Accumulator Blow Moulding Machine

Name: High Speed 1 Layer Ibc Accumulator Blow Moulding Machine
Brand: HUAYU
Price: 1 USD

Buy cheap High Speed 1 Layer Ibc Accumulator Blow Moulding Machine product

Brand Name : HUAYU

Model Number : HY1000L-IBC

Certification : CE Certificated,SGS;BV

Place of Origin : CHINA

MOQ : 1SET

Price : Negotiate

Payment Terms : L/C, T/T

Supply Ability : 40SETS PER YEAR

Delivery Time : 4MONTHS

Packaging Details : EXPORT PACKAGED

Clamping Force(Kn) : 1800

Condition : New

Automatic : Yes

Weight : 69Ton

Warranty : 1 Year

Plastic processed : HDPE、PE

After-sales service provided : Engineers service overseas

Output (kg/h) : 600 kg/h

Contact Now

High Speed 1 Layer Ibc Automatic Blow Molding Machine top-level standard.

Technical features:

The equipment uses Siemens control system and Flanders imported reducer, with efficient and stable equipment operation.
Equipped with a remote control system, it can quickly and accurately solve equipment problems.
The three-cylinder clamping system increases the clamping force and improves the clamping speed.
With a domestic market share of over 85%.

Condition

New

Video outgoing-inspection

Provided

Machinery Test Report

Provided

Warranty of core components

1 Year

Core Components

PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump

Plastic Processed

HDPE, PE

Place of Origin

Shandong, China

Automation

Automatic

Power (kW)

390

Weight (T)

Key Selling Points

High Productivity

Warranty

1 Year

Applicable Industries

Manufacturing Plant, Other

Showroom Location

United States, Brazil, India, Chile

Application

chemical industry package

Brand Name

huayu

Year

2023

Voltage

customized

Dimension(L*W*H)

customized

Hollow part volume

customized

PLC Brand

Siemens

Screw L/D Ratio

Screw diameter (mm)

120 mm

No. of Screw Heating Zone

Screw Heating Power(kW)

72 kW

Extruder Motor Power(kW)

110 kW

Mold Platen Size(Width)(mm)

1500 mm

Mold Platen Size(Height)(mm)

1600 mm

Air Pressure(MPa)

0.8 MPa

Air Comsumption(m³/min)

1.5 m³/min

Die Head Heating Power(kW)

70 kW

Accumulator Capacity(L)

60 L

After Warranty Service

Life

Blow Moulding Type

Extrusion Blow Moulding

Type

Extrusion Blow Molding Equipment

Marketing Type

Ordinary Product

Product name

Automatic Blowing Molding Machine

Range

IBC tank

CONTROLLER

PLC+Touch Screen

Layer

1 Layers

Parison Control

MOOG 200point

Material

HDPE

High Speed 1 Layer Ibc Accumulator Blow Moulding Machine

Product Tags:

accumulator blow moulding machine

accumulator blow molding machine

Ibc Machine

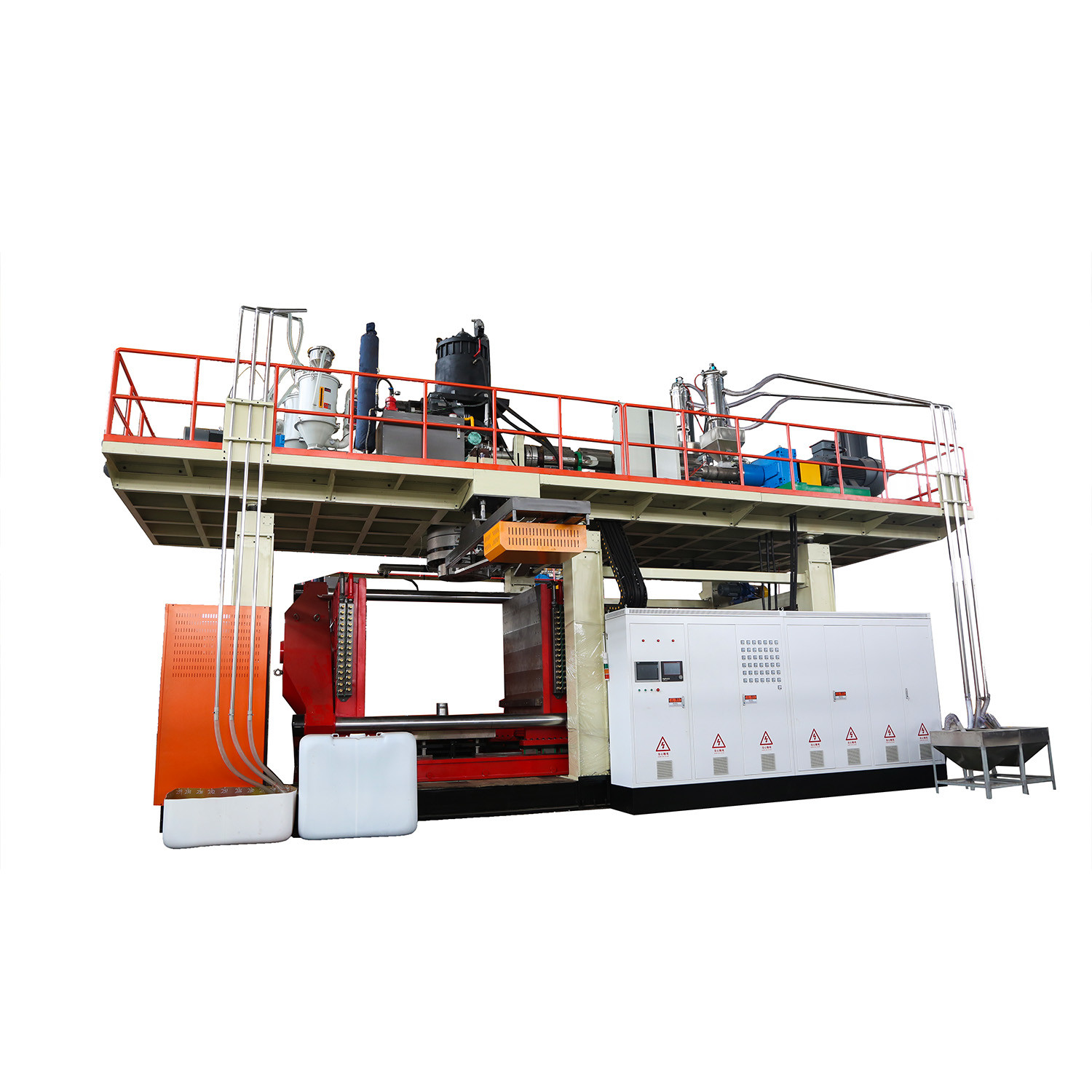

High Speed 1 Layer Ibc Accumulator Blow Moulding Machine Images
