Versatile 8-Layer 3000-5000l Blow Moulding Machine for Enhanced Barrier Properties
| Extrusion System |
| Screw diameter | 90mm*8 | Nitrided 38CrMoAIA |
| Screw L/D ratio | 28:1 | special designed screw can ensure the material plasticizing uniform and efficient |
| Extruder motor | 45kw*8 | |
| Reducer | 250*8 | Best quality brand in china ,long life and low noise |
| Screw heating power | 4kw*32 | |
| Plasticizing capacity | 800kg/h | |
| die head |
| Accumulator capacity | 90kg | designed by ourselves and get the patent. |
| Die diameter | According to products | |
| Die head heating power | 120kw | |
| Clamping System |
| platen size | 2200*2400*70mm(W*H*T) | smooth running, no noise; the clamping force is big |
| clamping cylinder | 320+160*2 | |
| clamping cylinder stroke | 2000mm | |
| clamping force | 1800KN | |
| distance between platens | 1200-3600mm | |
| max. mould size | 2000*2300mm(W*H) | |

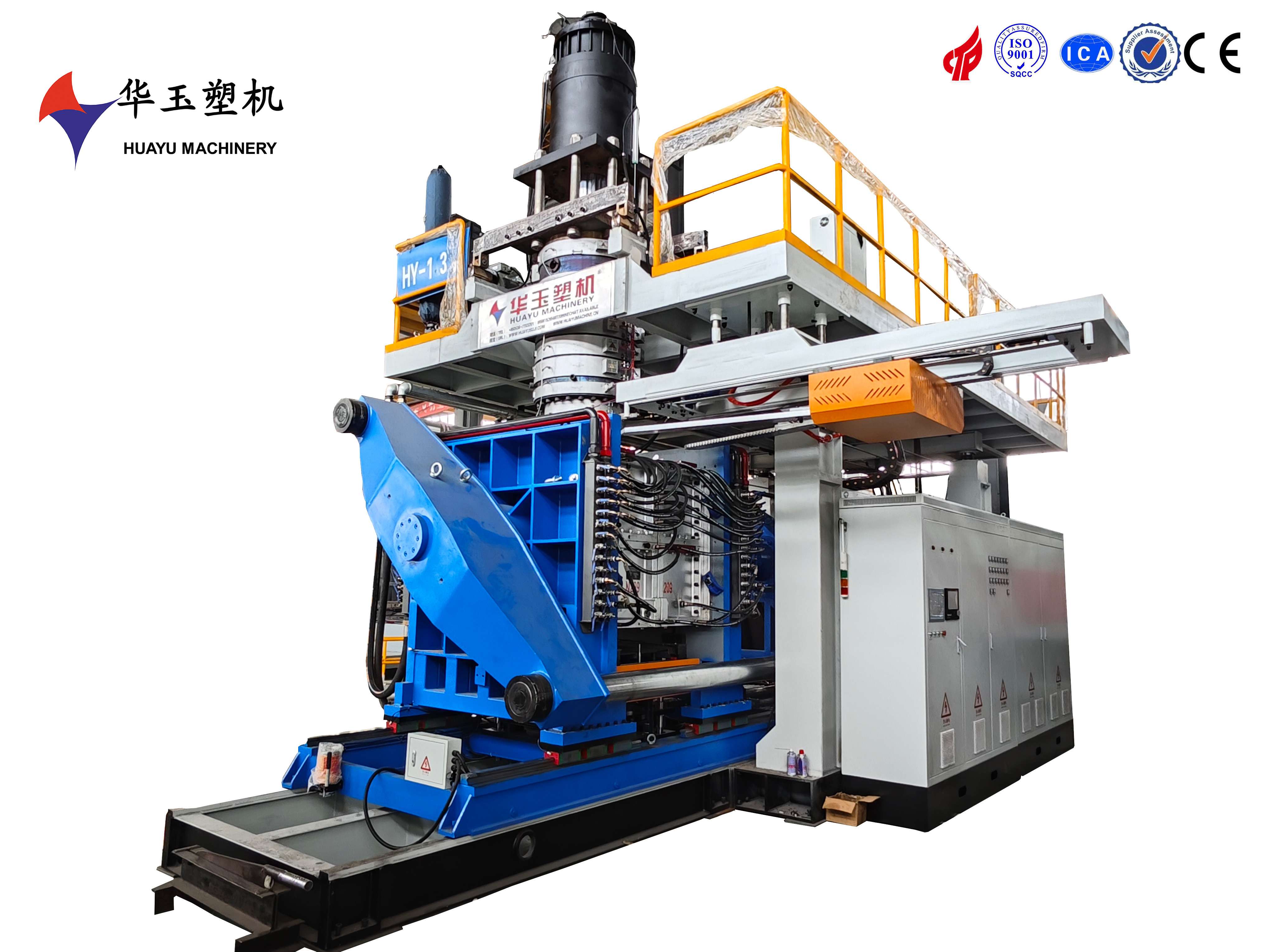

The Hua Yu 3000L 8-layer blow molding machine is a highly advanced plastic manufacturing equipment,offering remarkable performance and significant advantages.It features an 8-layer die head design,which allows for even more precise functional layering and material combinations.
This design significantly enhances the barrier properties,reducing oxygen permeability by over 90%and moisture penetration by up to 95%,making it ideal for high-sensitivity applications like pharmaceutical and electronic chemical packaging.The machine also achieves a 30%weight reduction while increasing impact resistance by 25%compared to traditional models,with a wall thickness uniformity error of≤±1.0%.
Its intelligent control system,equipped with an industrial-grade edge computing module,analyzes over 60 process parameters in real-time,dynamically adjusting extrusion rates and temperatures to boost production efficiency by 35%.The ultra-precise temperature control,combining electromagnetic induction heating and infrared feedback,maintains temperature fluctuations within±0.1℃,reducing energy consumption by 60%.
The modular design enables a 50-second rapid mold change,compatible with containers ranging from 100 to 2000mm in diameter.The machine’s three-hydraulic locking system,with a peak clamping force of 1800 kN,ensures the precision and stability of large container production.Additionally,it boasts a raw material utilization rate of 99.9%,achieved through zero-waste and online recycling processes,significantly cutting costs and environmental impact.
